Part Number: PC- 400010-TC

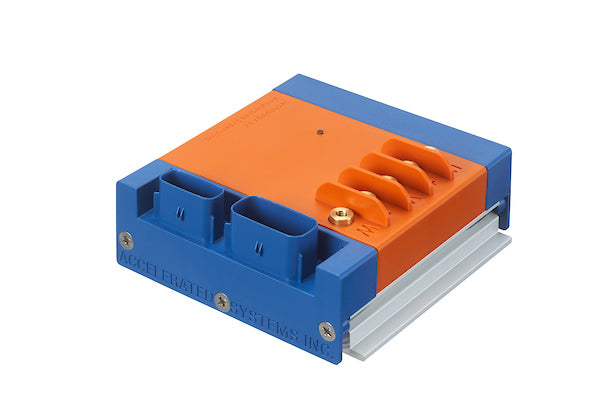

The BAC2000 is a compact, high-power-density motor controller designed for lithium-ion battery systems. It features advanced Field-Oriented Control (FOC), adaptive sensorless start, and auto-tuning, delivering up to 120% of a motor’s rated locked-rotor torque. It is an entry-level high-power solution for utility vehicles and related equipment.
Key Features:
| Peak Phase Current | 200A |
|---|---|
| Continuous Electrical Output Power @ 20°C Ambient | 2000W |
| Motor Control Model | Direct Field-Oriented Control |
| Supported Motor Types | 3-Phase Permanent Magnet |
| Supported Motor Sensor Types | Sensorless, 120° Electrical Halls, Sine/Cosine Encoder |
| Operating Ambient Temperature Range | -20 to 50°C |
| Inrush current limit | 60A |
| Communication Protocols | TTL, CANBus, Optional BT |
| Inputs | 3x Halls, 2x Digital, 4x Analogue |
| Outputs | Low-Side Switch |
| Mating I/O Connectors |
Molex 334716001 (6-pin) Molex 334721601 (16-pin) |
| Power Terminals | 5x M5-0.8 x 16mm |
Includes access to the BAC Door Display App (available to download FREE from our Support Site).
